::DAHUA:: |
| |
|
|
| |
|
:: Dahua Camera 800TVL HDIS :: |
| DH-FW191I |
 |
|
|
|
FW191I | |
Overview |
>1/3" 1.3Mega HDIS
>High resolution of 800TVL
>Day/Night(ICR), 3DNR, AWB, AGC,BLC
>6mm fixed lens (2.8mm, 3.6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V |
|
 | |
| Model |
DH-CA-FW191IP |
DH-CA-FW191IN |
| Camera |
| Image Sensor |
1/3" 1.3Mega HDIS |
| Effective Pixels |
1280(H)×960(V) |
| Horizontal Resolution |
800TVL |
| Electronic Shutter |
4/25s~1/45,000s |
4/30s~1/54,000s |
| Synchronization |
Internal |
| Mini. Illumination |
[email protected](AGC ON), 0Lux IR on |
| S/N Ratio |
More than 65dB (AGC OFF) |
| Video Output |
1Vp-p Composite Output (75Ω/BNC) |
| Camera Features |
| Max. IR LEDs Length |
20m, Smart IR |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC |
| White Balance |
Auto |
| Gain Control |
Auto |
| Noise Reduction |
2D/3D |
| Lens |
| Focal Length |
6mm fixed lens (2.8mm, 3.6mm, 8mm optional) |
| Angle of View |
H: 46.5º(89º/70º/35º) |
| Mount Type |
M12 |
| General |
| Power Supply |
DC12V±10% |
| Power Consumption |
Max 3.6W |
| Working Environment |
-40°C~+60°C / Less than 95%RH |
| Ingress Protection |
IP66 |

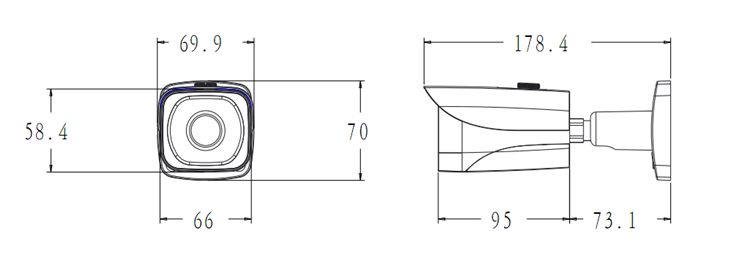

| Dimensions(W×D×H) |
178.4mm×69.9mm×70.0mm |
| Weight |
0.5kg |  | |
| |
|
|
|
|
|
| |
| |
| |
| |
| |
| | |
