::DAHUA:: |
| |
|
|
| |
|
:: Dahua Camera 800TVL HDIS :: |
| DH-FW191J |
 |
|
|
|
FW191J | |
Overview |
> 1/3" 1.3Mega HDIS
> High resolution of 800TVL
> Day/Night(ICR), ATW, AGC, BLC
> 8mm fixed lens (3.6mm, 6mm,12mm,16mm optional)
> Max. IR LEDs length 50m, Smart IR
> IP66, DC12V |
|
 | |
| Model |
DH-CA-FW191JP-B |
DH-CA-FW191JN-B |
| Camera |
| Image Sensor |
1/3" 1.3Mega HDIS |
| Effective Pixels |
1280(H)×960(V) |
| Horizontal Resolution |
800TVL |
| Electronic Shutter |
4/25s~1/45,000s |
4/30~1/54,000s |
| Synchronization |
Internal |
| Min. Illumination |
[email protected](AGC ON), 0Lux IR on |
| S/N Ratio |
More than 65dB(AGC Off) |
| Video Output |
1Vp-p Composite Output (75Ω/BNC) |
| Camera Features |
| Max. IR LEDs Length |
50m, Smart IR |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC |
| White Balance |
Auto |
| Gain Control |
Auto |
| Noise Reduction |
2D/3D |
| Lens |
| Focal length |
8mm fixed lens (3.6mm, 6mm, 12mm, 16mm optional) |
| Angle of View |
H: 35º(70º/46.5º/22.4º/16.8º) |
| Mount Type |
M12 |
| General |
| Power Supply |
DC12V±10% |
| Power Consumption |
Max 6W |
| Working Environment |
-40°C~+60°C / 20%~80%RH |
| Ingress Protection |
IP66 |

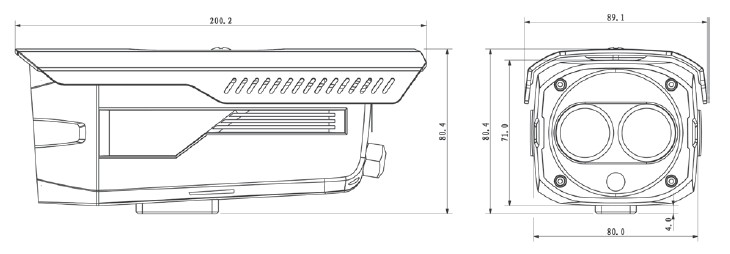

| Dimensions(W×D×H) |
200.2mm×89.1mm×161.2mm |
| Weight |
0.58kg |  | |
| |
|
|
|
|
|
| |
| |
| |
| |
| |
| | |
