::DAHUA::







DAHUA  HDCVI CAMERA 1.4 Megapixel Cmos

 :: Dahua Camera 1.4 Megapixel  ::

 HAC-HFW2120RP-Z



HAC-HFW2120RP-Z

Overview
>1/3" 1.4Megapixel CMOS
>25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>2.7~12mm motorized lens
>Max. IR LEDs length 30m, Smart IR
>IP66, DC12V




Model DH-HAC-HFW2120RP-Z DH-HAC-HFW2120RN-Z
Camera
Image Sensor 1/3" 1.4Megapixel CMOS
Effective Pixels 1305(H)×1049(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 25/50fps@720P 30/60fps@720P
Synchronization Internal
Mini. Illumination [email protected](AGC ON), 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 30m (60m optional), Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Angle of View H: 90º~28.7º
Lens Type Motorized / Fixed Iris
Mount Type F14
General
Power Supply DC12V±10%
Power Consumption Max 7.5W(30m IR) / 11W(60m IR)
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP66

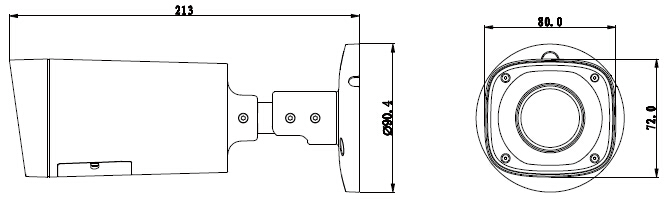

Dimensions(W×D×H) 213mm×80mm×72mm
Weight 0.55kg
